Power Supply for Battery Charger - 360w 15A 24V w/ XT60

Description

Don't need the compact size and higher output of the RDQ 400W PSU? Save some cash and pick up this 360W option! Powers any charger that take 24V through an XT60.

Check out all our chargers and accessories!

Features

•  Input:110V/220V AC; Output: DC 24V 15A max. Output voltage is adjustable 15%. Three sets of output Channel..
• Safety features:
• Automatic overload cut-off
• Over Voltage cut-off
• Automatic thermal cut-off
• Short circuit protection
• Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.
• It comes with built-in cooling fan and many holes on the metal case, which makes heat dissipation more efficient.
• Compact small size, high efficiency, high reliability and stable performance. Indoor use only!

Specifications

• Input: AC110V/220V 50/60Hz
• Output : DC 24V 15A 360W max
• Fix Screw Hole Diameter: 2.5mm (0.1inch)
• Working temperature: -10 to 50 degree Celsius
• Storage temperature: -20 to 60 degree Celsius
• Environmental humidity: 10-95%
• Material: Metal, Electronic Parts
• Safety Compliance: CCC/ FCC / CE

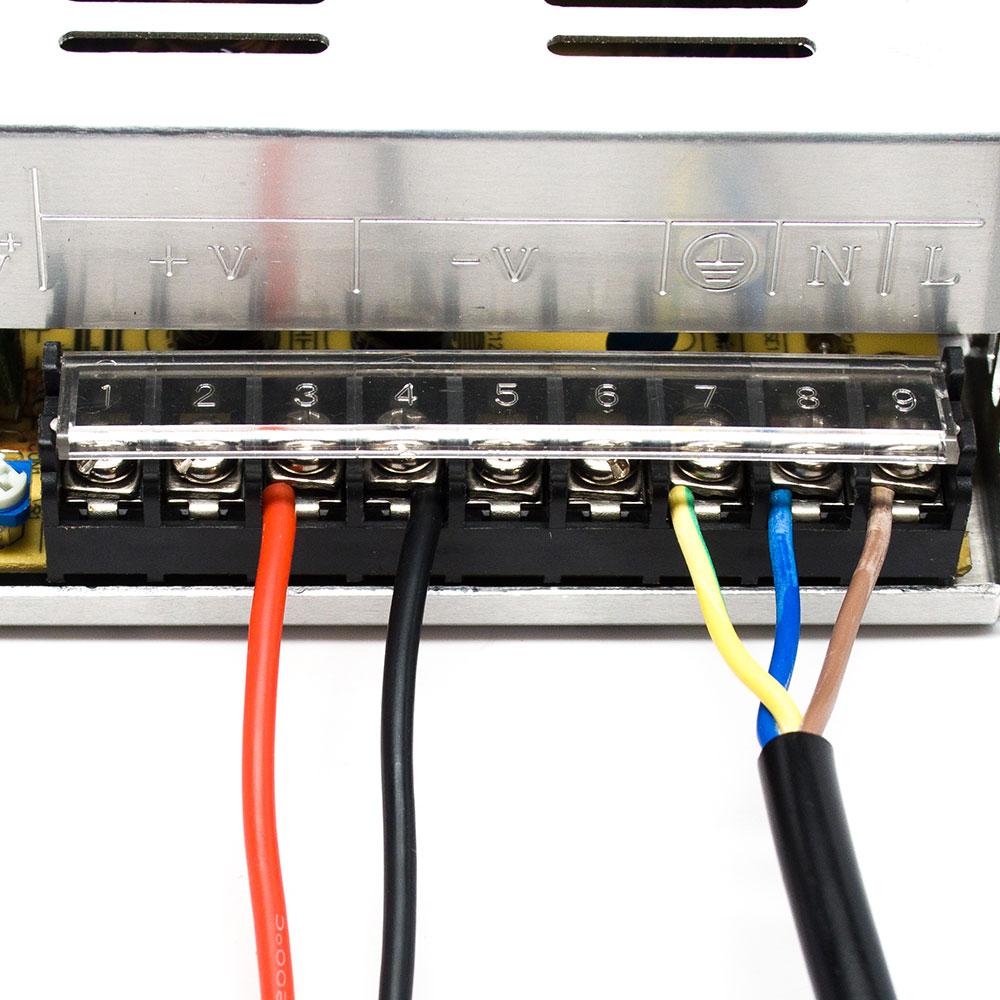

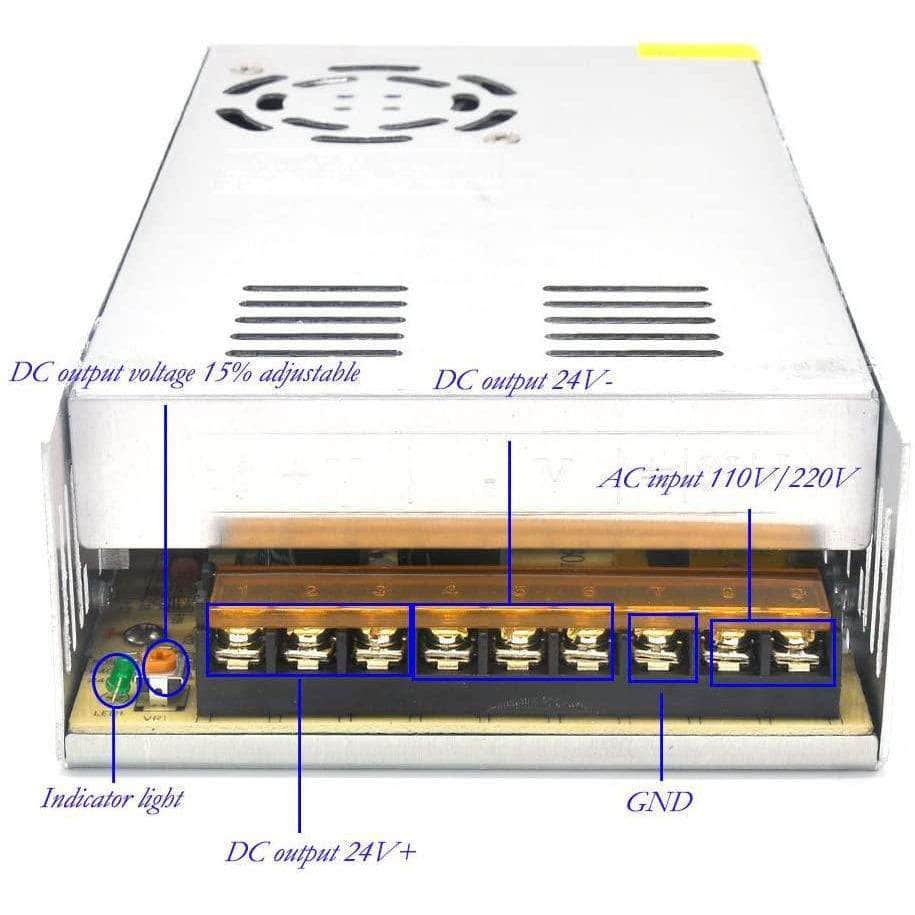

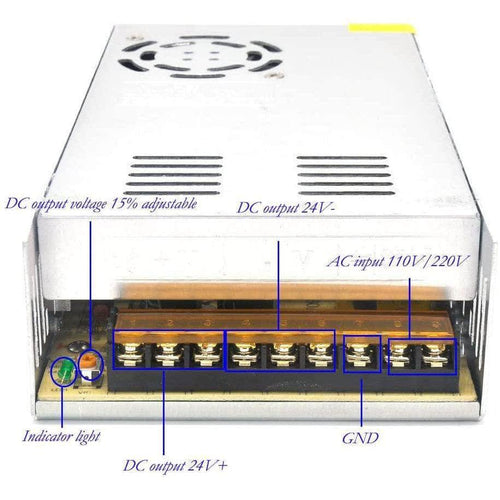

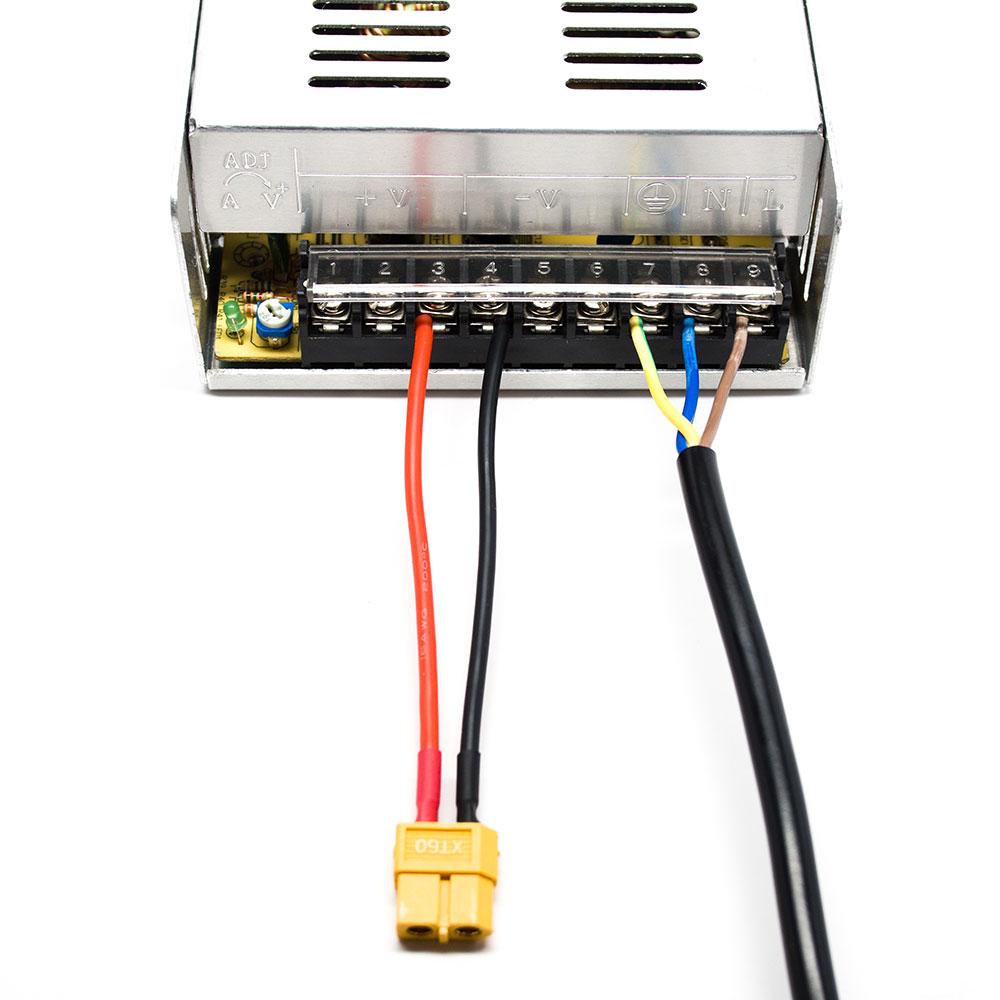

Connection Instructions

• L/N: AC power input
• +V: DC power output “+”
• -V: DC power output “-“
• ADJ: Adjust the output voltage (15%)

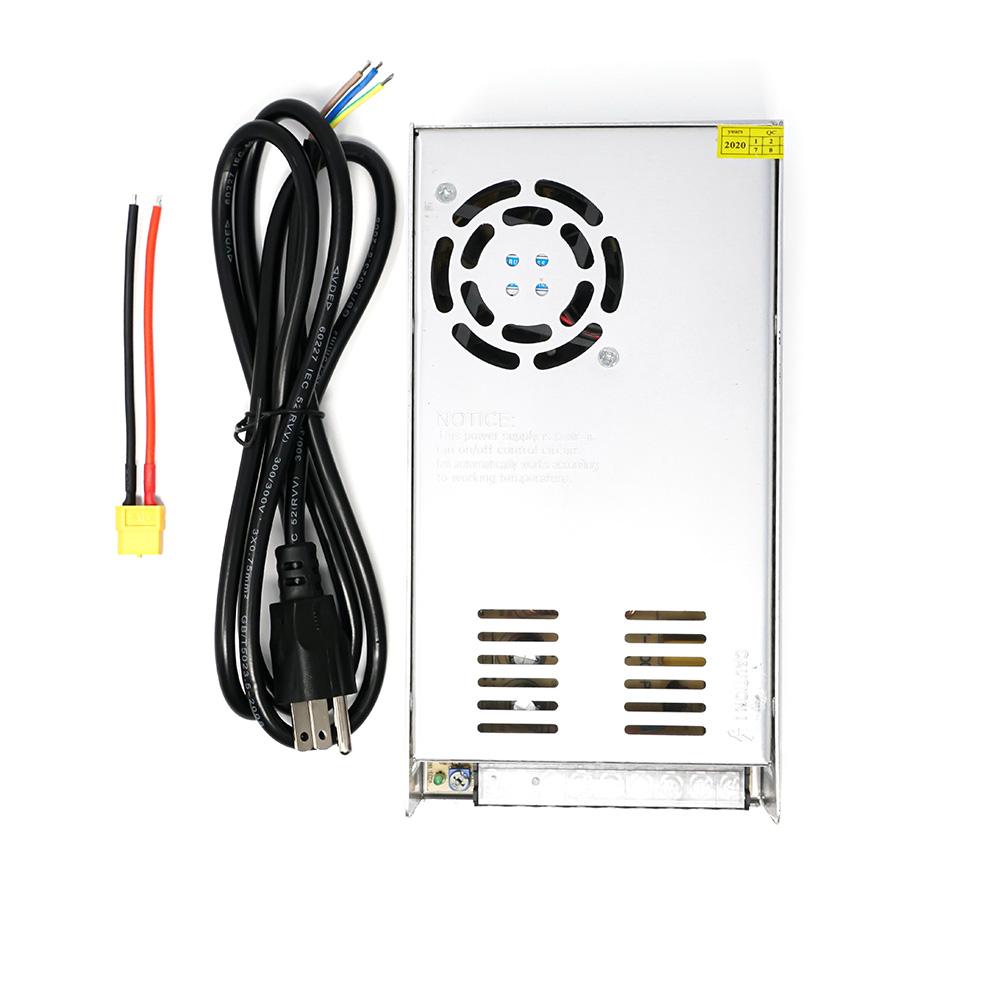

Includes

• 1x 24V 15A 360W Power Supply

• 1x XT60 Pigtail
• 1x AC Cable
